In Stock

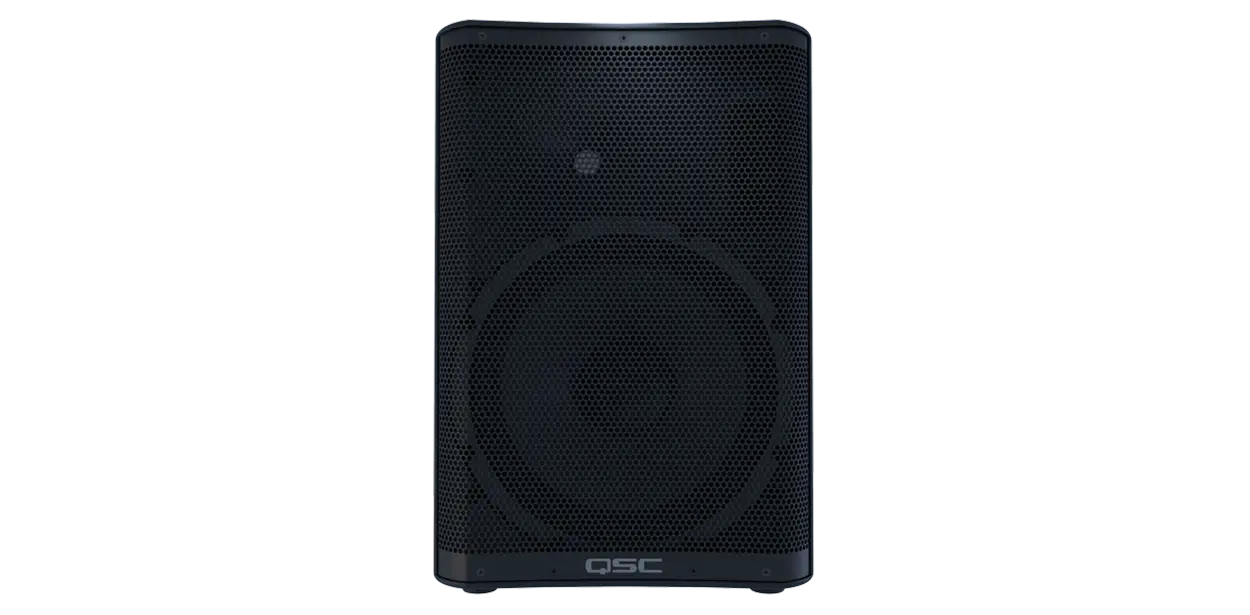

QSC CP12

Name: QSC CP12
Brand: QSC
SKU: 8074
Availability: InStock

12-inch Compact Powered Loudspeaker

Brands: QSC

1,458.52$

High performance, superior quality and lasting reliability. These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over have come to trust QSC to help them confidently deliver superior experiences and memorable performances. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.

Categories: PA Speakers, Pro Audio Tags: CP12, loudspeaker, Powered, QSC Brands: QSC

Description

Features

Compact and powerful performance
1000 Watt peak power Class-D amplifier module
Easily selected contours for commonly-used applications
Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
Directivity Matched Transition^® (DMT) for consistent frequency response across the entire coverage area
Light weight and highly portable
Professional appearance looks great in any application
Use for main PA, stage monitor, or instrument amplifier
35 mm pole socket
Optional yoke, tote, and outdoor cover accessories
Complete EASE and CAD information available online

Amplifier and DSP

The 1000 Watt (peak) power module delivers ample burst and continuous power for the loudspeaker’s matching transducers. Convection cooling provides heat dissipation, even in extreme climates, while contributing no additional background noise. Carefully tailored, subtle and sophisticated dynamics processing is used to protect the drivers from damage and the performance from

Compact and Light Weight

CP produces a big sound from a small package. Ultra-compact and remarkably light weight, CP is easy to load, carry, lift and deploy in a wide range of portable and installed applications.

Flexible Design

CP presents a compact, unobtrusive and stylish appearance that looks great in a wide range of applications. Both models can be utilized as either main PA (with included pole mount), floor monitor or installed via optional quick-connect yoke mount.

Additional information

Model	CP12
Configuration	Two-way active loudspeaker
LF Transducer:	305 mm (12 in), cone
HF Transducer:	35.6 mm (1.4 in) compression driver
Frequency Response (-6 dB)	49 – 20 kHz
Frequency Range (-10 dB)	47 – 20 kHz
Nominal Coverage Angle:	75° Axisymetric
Maximum Rated SPL¹:	126 dB
Amplifier:	Class D Peak: 800 W (LF), 200 W (HF)
Controls:	Power 2 × Gain Mic Boost Push Switch 6-way Contour Selection Switch
Indicators:	Power LED 2 × Input Signal LED Input B MIC selected LED Limiter active LED
Connectors:	2 × locking XLR/F ¼” combo (Line Input and Mic/Line input) 1 × 3.5 mm TRS (Stereo Input) 1 × XLR/M (Mix Output) 1 × IEC power connector
AC Power Input:	Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption (1/8th Power):	100 VAC, 0.75A – 240VAC 0.31A
Enclosure Material:	Polypropylene
Attachment Points:	M8 threaded insert
Color:	Black (RAL 9011)
Grille:	18 Gauge powder-coated steel
Speaker Dimensions (H×W×D):	516 × 350 × 323 mm 20.3 × 13.8 × 12.7 in
Carton Dimensions (H×W×D):	430 × 430 × 604 mm 17 × 17 × 23.8 in
Net Weight:	13.7 kg / 30.3 lb
Shipping Weight:	16.5 kg / 36.4 lb
Regulatory:	EMC, UL, CB
Optional Accessories:	CP12 Tote, CP12 Outdoor Cover, CP12 Yoke
